WD Network Cabinets

19" Server Racks - WD series are accordance with ANSI/EIA RS 310-C/D and certified by UL, CE, MIL-STD-167 vibration test, MIL-STD-810F vibration test, GR63-Zone4 and pressing certified that can bear loads above 2500 KGW, and have passed ISO 9001. 19" server racks offer of complete network supplies and solutions for all types of businesses.

※Photos and pictures are for reference only, please be based on the actual products.

Computer Server Racks, 19" Server Racks (Aluminum) - WD
  • Main structure
    1.Its steady lightweight aluminum extrusion frame (material: AL6063T5) with 3 direction integrally molded corners casting (material: ADC12) to make frames more stable. In order to enhance shock resistance, it connects with three directions of XYZ axes by M5 HSCS and stainless steel framework, while exportation or a long distance delivery, there's flat pack on service to easily build on site which may reduce the cost of transportation.
  • Mounting vertical rails
    2.Mounting post rails that meet ANSI/EIA RS-310-C/D standard can fit different 19" cabinet rack, ex: COMPAQ, SUN, IBM, HP, ACER...etc.
  • Mounting rail (material AL6063T5)
    3.It is movable to fit different depth of equipment. ※ High 35U above;Depth 90 cm under*4 pcs / each sets.
  • Top cover
    4. 2 ventilation fans and adjustable cover (3-pieces) to do dust-proof and cool down. (It's adjustable as per customer demand)
  • Bottom frame
    5. 3-pieces adjustable Bottom plate on the bottom frame which plate can be removed by cable entry.
  • Front and rear Door frames
    6.The doors are acrylic or standard vent doors for combined options including concealed locks and handles. It can be easily assembled and removed without tools. (There is also a honeycomb vent door for options that can reach 60% of heat removal.
  • Side panel
    7.The side panel can be easily assembled and removeable without tools.
  • Anti-vibration brackets
    8.The device can be set the 2.5" caster and the 4" leveling feet can poise the equipment.
  • Power strip inside (8-way 110V / 120V)
    9.It's passed UL certified. ( it's also available in customized specification)
  • Surface finish of the rack
    10.Applying powder coating to prevent from get rust, oxidization and scuffing damage etc.This is accordance with ROHS standard. Our standard color is white and black. (custom color also available)

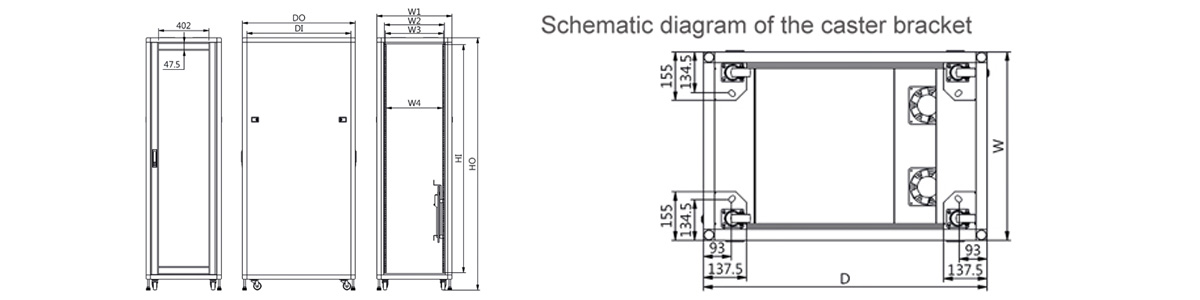

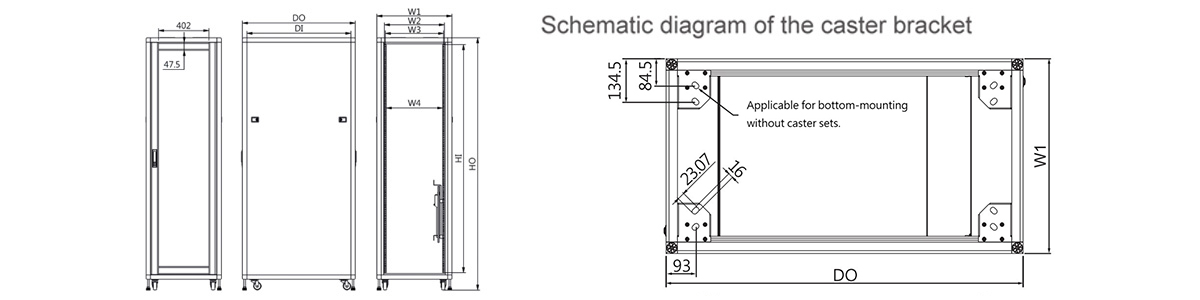

Model No.U UnitDO
Outside Depth
DI
Inside Depth
KGHO
Outside Height
HI
Inside Height
WD-15-62 15U 620 550 42 860 668
WD-15-77 15U 770 700 50 860 668
WD-15-90 15U 900 830 57 860 668
WD-20-62 20U 620 550 50 1082 889
WD-20-77 20U 770 700 57 1082 889
WD-20-90 20U 900 830 66 1082 889
WD-25-62 25U 620 550 55 1305 1112
WD-25-77 25U 770 700 64 1305 1112
WD-25-90 25U 900 830 73 1305 1112
WD-25-100 25U 1000 930 81 1305 1112
WD-30-62 30U 620 550 62 1527 1334
WD-30-77 30U 770 700 71 1527 1334
WD-30-90 30U 900 830 79 1527 1334
WD-30-100 30U 1000 930 85 1527 1334
WD-35-62 35U 620 550 68 1749 1556
WD-35-77 35U 770 700 77 1749 1556
WD-35-90 35U 900 830 83 1749 1556
WD-35-100 35U 1000 930 88 1749 1556
WD-35-110 35U 1100 1030 99 1749 1556
WD-41-62 41U 620 550 76 2016 1823
WD-41-77 41U 770 700 85 2016 1823
WD-41-90 41U 900 830 90 2016 1823
WD-41-100 41U 1000 930 96 2016 1823
WD-41-110 41U 1100 1030 100 2016 1823
WD-41-120 41U 1200 1130 106 2016 1823
WD-42-62 42U 620 550 77 2060 1867
WD-42-77 42U 770 700 86 2060 1867
WD-42-90 42U 900 830 91 2060 1867
WD-42-100 42U 1000 930 97 2060 1867
WD-42-110 42U 1100 1030 102 2060 1867
WD-42-120 42U 1200 1130 110 2060 1867



InchW1W2W3W4
19" 600 483 465 451
23" 702 584 567 553



※Available to customize
※1U=1.75inchs=44.45mm, standard unit=mm
