NWA2 Wall-Mount Upright Rack

NWA2 Wall-Mount Upright Rack

NWA2 Series meet ANSI/EIA RS 310-D standards can be used with the 19" 3U equipment. Besides, they're all certified by UL, CE, ISO 14001 and ISO 9001.

※Photos and pictures are for reference only, please be based on the actual products.

NWA2 Wall-Mount Upright Rack
  • NWA2 Wall-Mount Upright Rack
  • NWA2 Wall-Mount Upright Rack
  • NWA2 Wall-Mount Upright Rack
  • NWA2 Wall-Mount Upright Rack
  • Feature
    1.Main body adopts one-piece structure design and it is made of SPCC materials.
  • 2.Horizontal rails that meet ANSI/EIA RS-310-D standard can fit the 19” 3U equipment.
  • 3.Top frame with fan unit to make the ventilation of equipment.

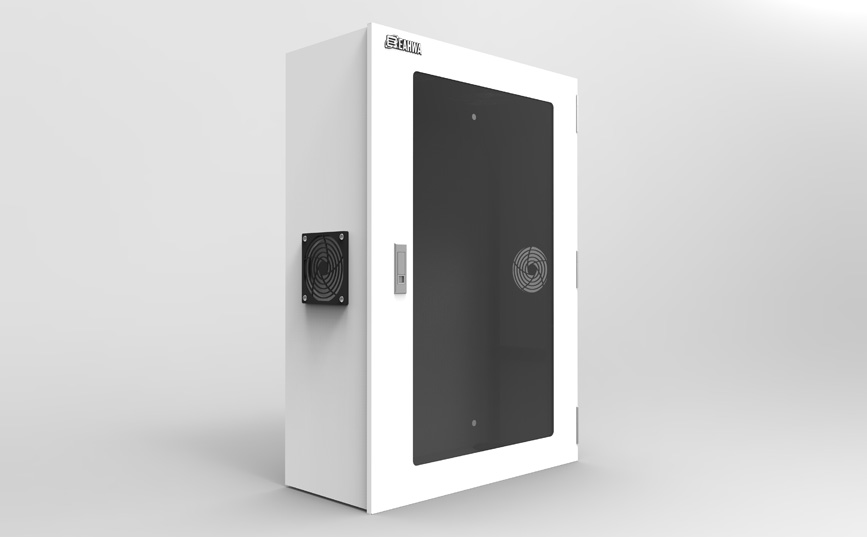

  • 4.Front acrylic door design with hidden handle lock. (Optional: vent door)
  • 5.The rack has made cable entry holes and has rubber cover to provide dust or insects destroy the equipment.
  • 6.Install filter on left and right side to leach the air flow.
  • 7.Powder coating to fight against rust, oxidization. There is accordance with ROHS standard. The standard color: white or black.
  • 8.Special size can be custom-made according request.

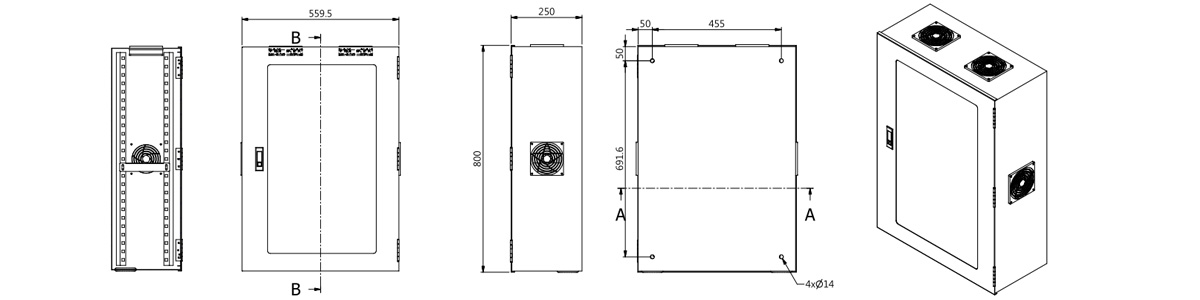

Model No.U
Unit		WO
Outside Width		HO
Outside Height		DO
Outside Depth
NWA2-0380 3U 559.5 800 250





※Available to customize
※1U=1.75inchs=44.45mm， standard unit=mm
