AWD Server Cabinets

19" Server Racks - AWD series are accordance with ANSI/EIA RS 310-C/D and certified by UL, CE, MIL-STD-167 vibration test, MIL-STD-810F vibration test, GR63-Zone4 and pressing certified that can bear loads above 2500 KGW, and have passed ISO 9001. 19" server racks offer of complete network supplies and solutions for all types of businesses.

※Photos and pictures are for reference only, please be based on the actual products.

19" Rack Cabinet, 19" Cabinets - AWD Series
  • Main structure

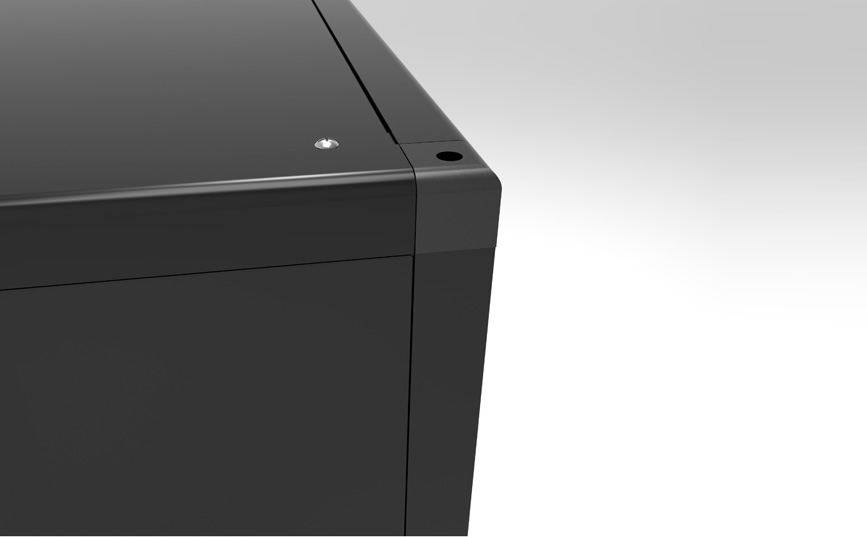

    1.Its steady lightweight aluminum extrusion frame (material: AL6063T5) with 3 direction integrally molded corners casting (material: ADC12) to make frames more stable. In order to enhance shock resistance, it connects with three directions of XYZ axes by M5 HSCS and stainless steel framework, while exportation or a long distance delivery, there's flat pack on service to easily build on site which may reduce the cost of transportation.
  • Mounting vertical rails
    2.Mounting post rails that meet ANSI/EIA RS-310-C/D standard can fit different 19" cabinet rack, ex: COMPAQ, SUN, IBM, HP, ACER...etc.

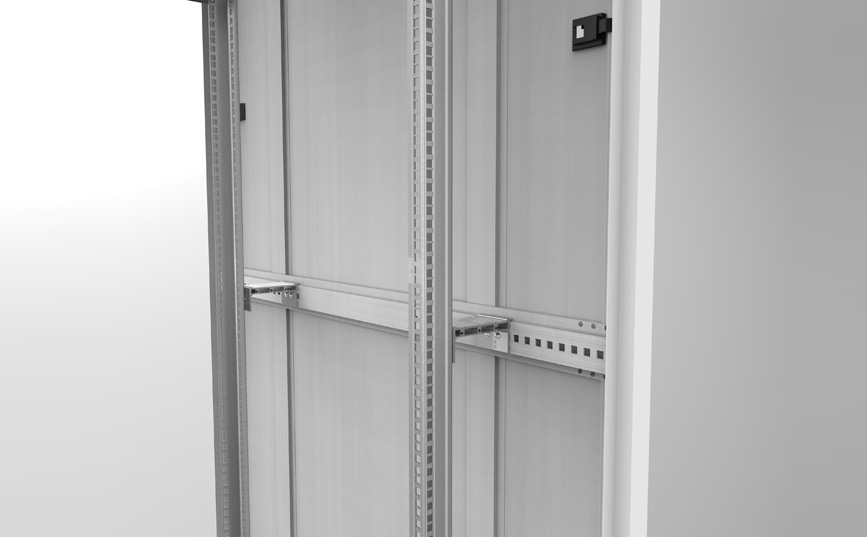

  • Mounting rail (material AL6063T5)
    3.It is movable to fit different depth of equipment. ※ High 35U above;Depth 90 cm under*4 pcs / each sets.
  • Top cover
    4. 2 ventilation fans and adjustable cover (3-pieces) to do dust-proof and cool down. (It's adjustable as per customer demand)
  • Bottom frame

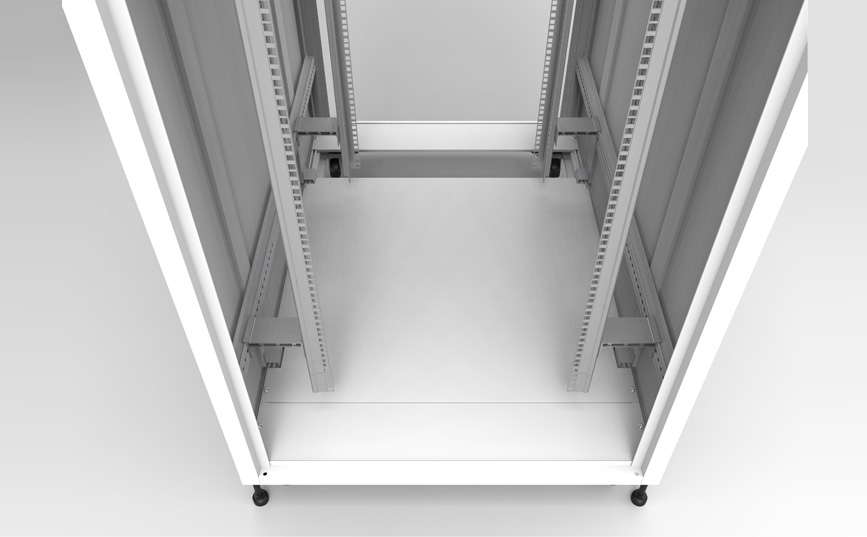

    5. 3-pieces adjustable Bottom plate on the bottom frame which plate can be removed by cable entry.
  • Front and rear Door frames

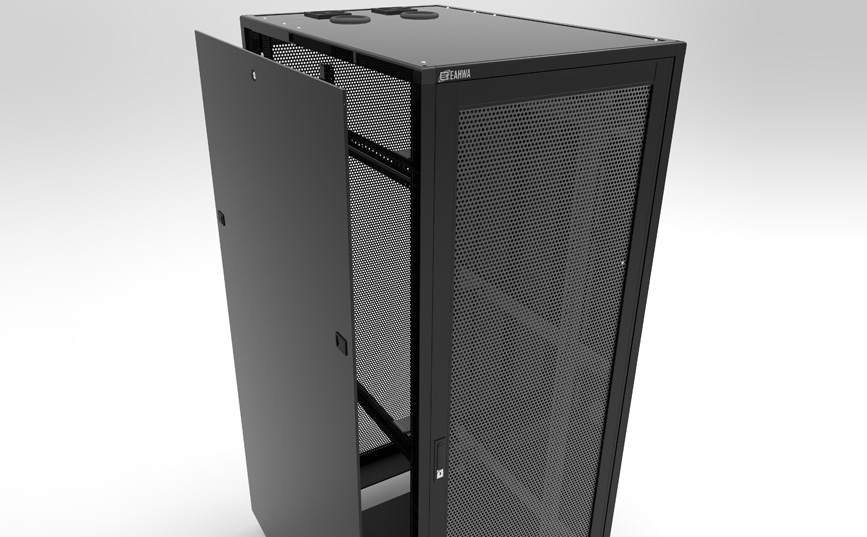

    6.The doors are acrylic or standard vent doors for combined options including concealed locks and handles. It can be easily assembled and removed without tools. (There is also a honeycomb vent door for options that can reach 60% of heat removal.
  • Side panel
    7.The side panel can be easily assembled and removeable without tools.
  • Anti-vibration brackets
    8.The device can be set the 2.5" caster and the 4" leveling feet can poise the equipment.
  • Power strip inside (8-way 110V / 120V)
    9.It's passed UL certified. ( it's also available in customized specification)
  • Surface finish of the rack

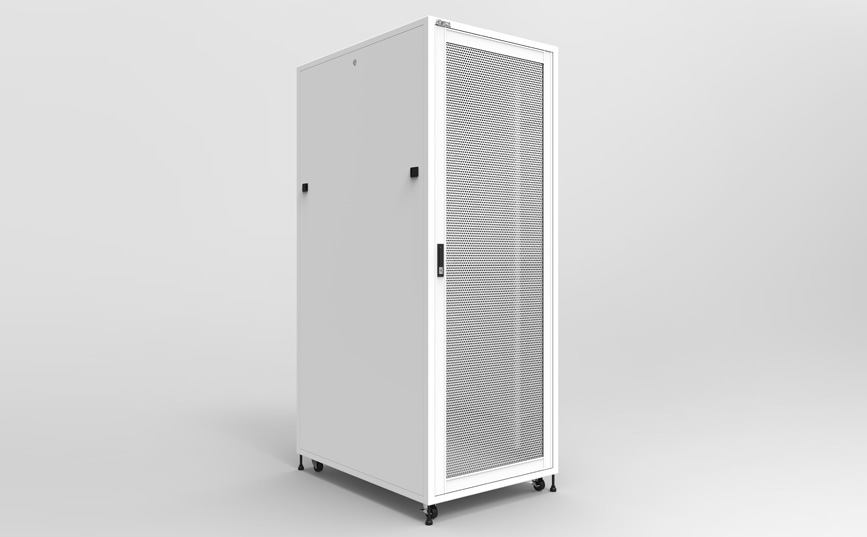

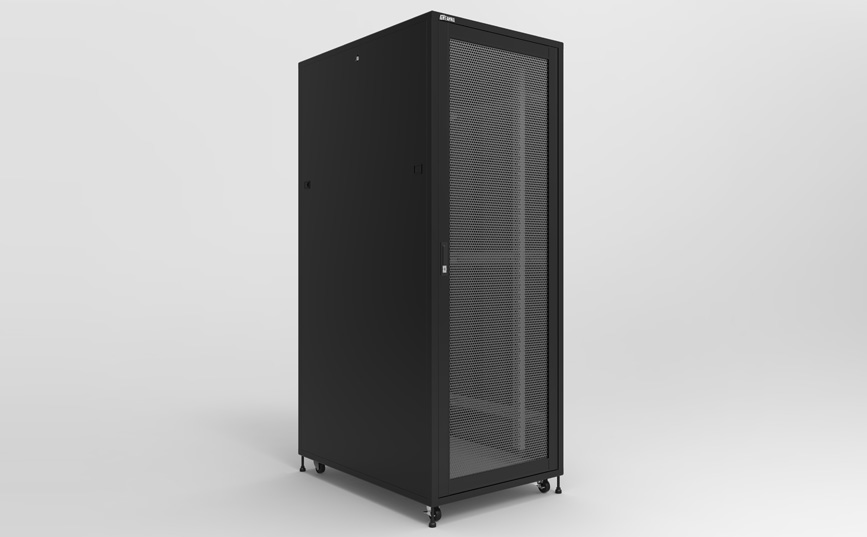

    10.Applying powder coating to prevent from get rust, oxidization and scuffing damage etc.This is accordance with ROHS standard. Our standard color is white and black. (custom color also available)

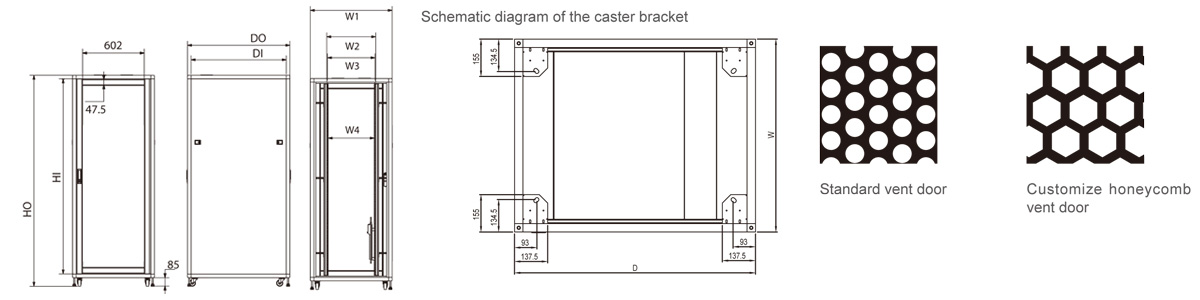

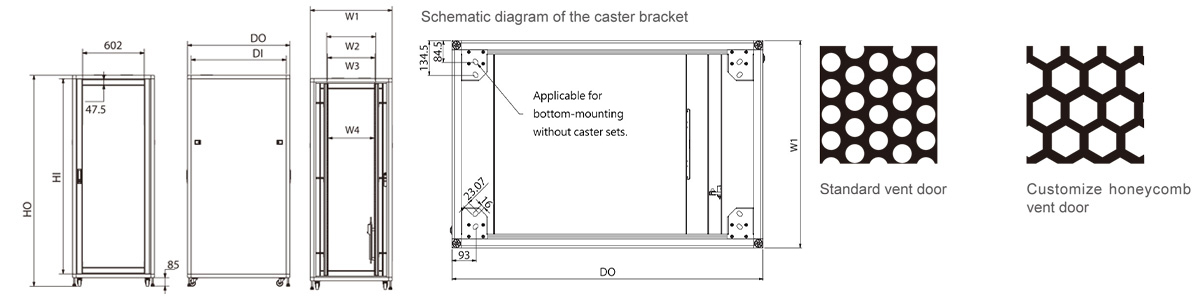

Model No.U
Unit
DO
Outside Depth
DI
Inside Depth
KGHO
Outside Height
HI
Inside Height
AWD-35-62 35U 620 550 77 1749 1556
AWD-35-77 35U 770 700 85 1749 1556
AWD-35-90 35U 900 830 92 1749 1556
AWD-41-62 41U 620 550 84 2016 1823
AWD-41-77 41U 770 700 93 2016 1823
AWD-41-90 41U 900 830 98 2016 1823
AWD-41-100 41U 1000 930 104 2016 1823
AWD-41-110 41U 1100 1030 108 2016 1823
AWD-42-62 42U 620 550 80 2060 1867
AWD-42-77 42U 770 700 90 2060 1867
AWD-42-90 42U 900 830 98 2060 1867
AWD-42-100 42U 1000 930 106 2060 1867
AWD-42-110 42U 1100 1030 111 2060 1867
AWD-42-120 42U 1200 1130 117 2060 1867



InchW1W2W3W4
19" 800 483 465 451
23" 800 584 567 553



※Available to customize
※1U=1.75inc  hs=44.45mm, standard unit=mm
