NWA Wall-Mount Rack

NWA Series meet ANSI/EIA RS 310-C standards can be used with the 19" cabinet rack. Besides, NWA series have all certified by UL, CE and passed EIL-STD-167, MIL-STD-810F by organization certificate and ISO 9001.

※Photos and pictures are for reference only, please be based on the actual products.

Wall Mount Enclosures, Wall Mount Network Cabinet - NWA
  • Wall Mount Enclosures, Wall Mount Network Cabinet - NWA
  • Wall Mount Enclosures, Wall Mount Network Cabinet - NWA
  • Wall Mount Enclosures, Wall Mount Network Cabinet - NWA
  • Wall Mount Enclosures, Wall Mount Network Cabinet - NWA
  • Wall Mount Enclosures, Wall Mount Network Cabinet - NWA
  • Main structure
    1.Main body adopts one-piece structure design and it is made of SPCC materials.
  • Vertical rails
    2.Vertical rails that meet ANSI/EIA RS-310-C standard can fit different 19" cabinet rack.
  • Top frame with fan
    3.Top frame with fan unit to make the ventilation of equipment.
  • Front acrylic door
    4.Front acrylic door design with hidden handle lock. (Optional: vent door)
  • Cable holes
    5.The rack has made cable entry holes and has rubber cover to provide dust or insects destroy the equipment.
  • Air flow
    6.Install filter on left and right side to leach the air flow.
  • Power strip
    7.Power strip (6-way 110V) has passed UL certified.
  • Surface finishing
    8.Powder coating to fight against rust, oxidization. There is accordance with ROHS standard. The standard color: white.
  • Standardization
    9.Standardization for specification, prompt delivery, and special size can be custom-made according request.

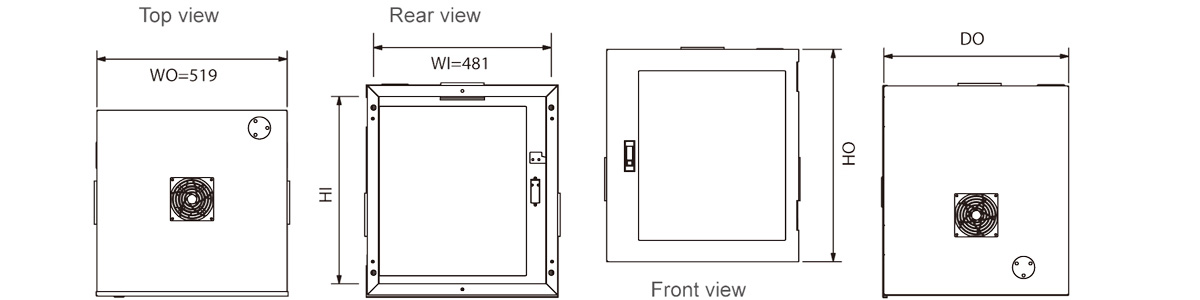

Model No.U
Unit		HO
Outside Height		HI
Inside Height		DO
Outside Depth
NWA-0650 6U 302 267 500
NWA-0850 8U 391 356 500
NWA-1050 10U 480 445 500
NWA-1250 12U 569 534 500
NWA-1550 15U 702 667 500





※Available to customize
※1U=1.75inchs=44.45mm， standard unit=mm
