AHD Server Enclosures

19" Server Racks - AHD series are accordance with ANSI/EIA RS 310-C/D and certified by UL, CE, MIL-STD-167 vibration test, MIL-STD-810F vibration test, GR63-Zone4 and pressing certified that can bear loads above 2500 KGW, and have passed ISO 9001. 19" server racks offer of complete network supplies and solutions for all types of businesses.

※Photos and pictures are for reference only, please be based on the actual products.

Computer Server Cabinet - AHD Series
  • Main structure
    1.Its steady lightweight aluminum extrusion frame (material: AL6063T5) with 3 direction integrally molded corners casting (material: ADC12) to make frames more stable. In order to enhance shock resistance, it connects with three directions of XYZ axes by M5 HSCS and stainless steel framework, while exportation or a long distance delivery, there's flat pack on service to easily build on site which may reduce the cost of transportation.
  • Mounting vertical rails
    2.Mounting post rails that meet ANSI/EIA RS-310-C/D standard can fit different 19" cabinet rack, ex: COMPAQ, SUN, IBM, HP, ACER...etc.
  • Mounting rail (material AL6063T5)
    3.It is movable to fit different depth of equipment. ※ High 35U above;Depth 90 cm under*4 pcs / each sets.
  • Top cover
    4. 2 ventilation fans and adjustable cover (3-pieces) to do dust-proof and cool down. (It's adjustable as per customer demand)
  • Bottom frame
    5. 3-pieces adjustable Bottom plate on the bottom frame which plate can be removed by cable entry.
  • Front and rear Door frames
    6.The doors are acrylic or standard vent doors for combined options including concealed locks and handles. It can be easily assembled and removed without tools. (There is also a honeycomb vent door for options that can reach 60% of heat removal.
  • Side panel
    7.The side panel can be easily assembled and removeable without tools.
  • Anti-vibration brackets
    8.The device can be set the 2.5" caster and the 4" leveling feet can poise the equipment.
  • Power strip inside (8-way 110V / 120V)
    9.It's passed UL certified. ( it's also available in customized specification)
  • Surface finish of the rack
    10.Applying powder coating to prevent from get rust, oxidization and scuffing damage etc.This is accordance with ROHS standard. Our standard color is white and black. (custom color also available)
  • Surface finish of the rack
    11.Applying powder coating to prevent from get rust, oxidization and scuffing damage etc. This is accordance with ROHS standard. Our standard color is white and black. (custom color also available)

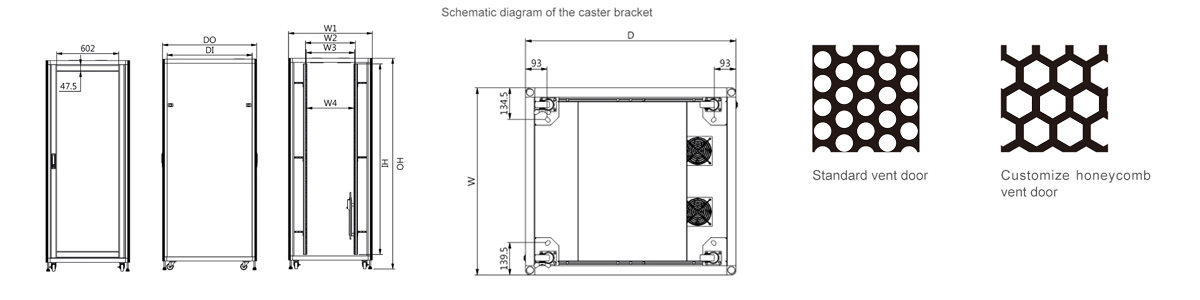

Model No.

U
Unit

DO
Outside Depth

DI
Inside Depth

KG

HO
Outside Height

HI
Inside Heigh

AHD-35-62 35U 620 550 55 1749 1556
AHD-35-77 35U 770 700 59 1749 1556
AHD-35-90 35U 900 830 63 1749 1556
AHD-35-100 35U 1000 930 67 1749 1556
AHD-35-110 35U 1100 1030 71 1749 1556
AHD-41-62 41U 620 550 61 2016 1823
AHD-41-77 41U 770 700 65 2016 1823
AHD-41-90 41U 900 830 69 2016 1823
AHD-41-100 41U 1000 930 74 2016 1823
AHD-41-110 41U 1100 1030 77 2016 1823
AHD-42-90 42U 900 830 70 2060 1867
AHD-42-100 42U 1000 930 74 2060 1867
AHD-42-110 42U 1100 1030 78 2060 1867
AHD-42-120 42U 1200 1130 78 2060 1867

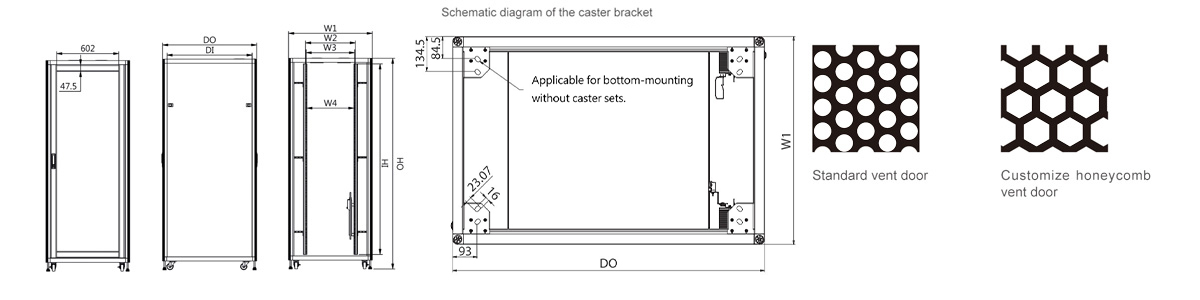

InchW1W2W3W4
19" 800 483 465 451
23" 800 583 567 553



※Available to customize
※1U=1.75inchs=44.45mm,standard unit=mm
