Network Server Cabinets - HD Series
  • Main structure
    1.Its steady lightweight aluminum extrusion frame (material: AL6063T5) with 3 direction integrally molded corners casting (material: ADC12) to make frames more stable. In order to enhance shock resistance, it connects with three directions of XYZ axes by M5 HSCS and stainless steel framework, while exportation or a long distance delivery, there's flat pack on service to easily build on site which may reduce the cost of transportation.
  • Mounting vertical rails
    2.Mounting post rails that meet ANSI/EIA RS-310-C/D standard can fit different 19" cabinet rack, ex: COMPAQ, SUN, IBM, HP, ACER...etc.
  • Mounting rail (material AL6063T5)
    3.It is movable to fit different depth of equipment. ※ High 35U above;Depth 90 cm under*4 pcs / each sets.
  • Top cover
    4. 2 ventilation fans and adjustable cover (3-pieces) to do dust-proof and cool down. (It's adjustable as per customer demand)
  • Bottom frame
    5. 3-pieces adjustable Bottom plate on the bottom frame which plate can be removed by cable entry.
  • Front and rear Door frames
    6.The doors are acrylic or standard vent doors for combined options including concealed locks and handles. It can be easily assembled and removed without tools. (There is also a honeycomb vent door for options that can reach 60% of heat removal.
  • Side panel
    7.The side panel can be easily assembled and removeable without tools.
  • Anti-vibration brackets
    8.The device can be set the 2.5" caster and the 4" leveling feet can poise the equipment.
  • Power strip inside (8-way 110V / 120V)
    9.It's passed UL certified. ( it's also available in customized specification)
  • Surface finish of the rack
    10.Applying powder coating to prevent from get rust, oxidization and scuffing damage etc.This is accordance with ROHS standard. Our standard color is white and black. (custom color also available)

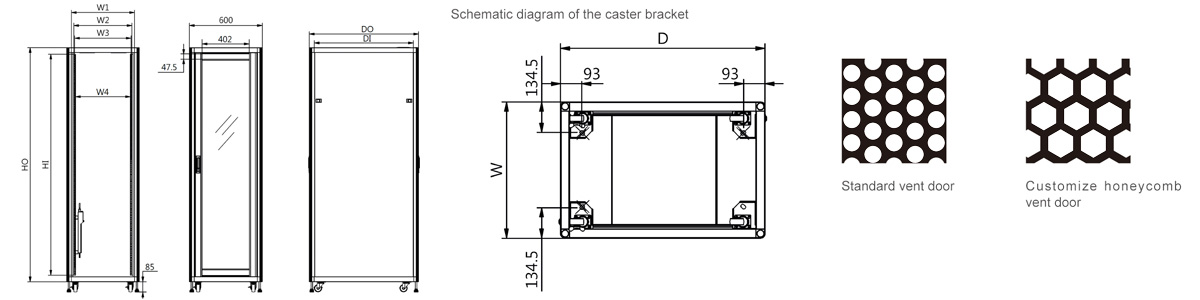

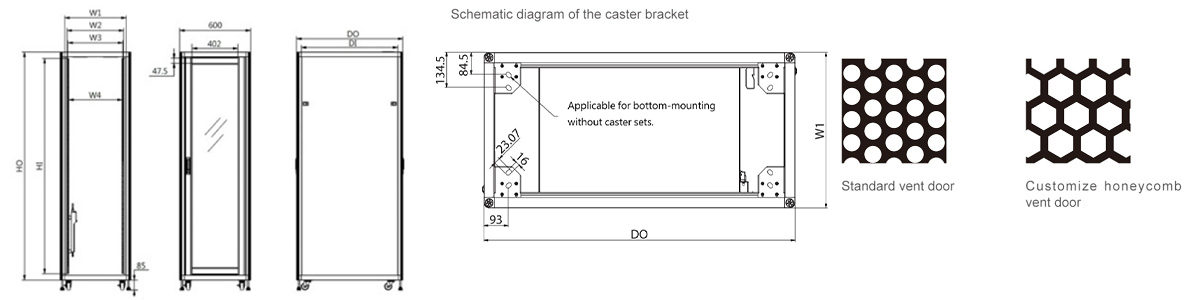

Model No.U
(Unit)
DO
Outward Depth
DI
Inward Depth
KGHO
Outside Heighe
HI
Inside Height
HD-15-77 15U 770 700  29 860 668
HD-15-90 15U 900 830  34 860 668
HD-20-62 20U 620 550  29 1082 889
HD-20-77 20U 770 700  34 1082 889
HD-20-90 20U 900 830  39 1082 889
HD-25-62 25U 620 550  37 1305 1112
HD-25-77 25U 770 700  41 1305 1112
HD-25-90 25U 900z 830  44 1305 1112
HD-30-62 30U 620 550  41 1527 1334
HD-30-77 30U 770 700  45 1527 1334
HD-30-90 30U 900 830  49 1527 1334
HD-35-62 35U 620 550  45 1749 1556
HD-35-77 35U 770 700  50 1749 1556
HD-35-90 35U 900 830  53 1749 1556
HD-35-100 35U 1000 930  56 1749 1556
HD-35-110 35U 1100 1030  59 1749 1556
HD-41-62 41U 620 550  50 2016 1823
HD-41-77 41U 770 700  56 2016 1823
HD-41-90 41U 900 830  59 2016 1823
HD-41-100 41U 1000 930  63 2016 1823
HD-41-110 41U 1100 1030  66 2016 1823
HD-42-62 42U 620 550  50 2060 1867
HD-42-77 42U 770 700  55 2060 1867
HD-42-90 42U 900 830  60 2060 1867
HD-42-100 42U 1000 930  63 2060 1867
HD-42-110 42U 1100 1030  67 2060 1867
HD-42-120 42U 1200 1130  70 2060 1867
HD-45-90 45U 900 830  63 2194 2001
HD-45-100 45U 1000 930  67 2194 2001
HD-45-110 45U 1100 1030  71 2194 2001



InchW1W2W3W4
19" 600 482 465 451
23" 702 584 567 553




※Available to customize
※1U=1.75inchs=44.45mm, standard unit=mm
