NOP Aluminum Open Rack

NOP Aluminum Open Rack

Open Rack - NOP is produced according to the regulation of ANSI/EIA RS-310-C/D standard. It has modular design and it stables structurally and easy to install and transport. The materials are SPCC and aluminum. Custom-design is also available and can choose various accessories.

※Photos and pictures are for reference only, please be based on the actual products.

NOP - Open Server Rack (Aluminum)
  • NOP - Open Server Rack (Aluminum)
  • NOP - Open Server Rack (Aluminum)
  • NOP - Open Server Rack (Aluminum)
  • NOP - Open Server Rack (Aluminum)
  • Feature
    1.Main solid AL6063T5 extraction pillars makes whole piece firmly assemble. 2-Way design brings more convenience while daily / regular maintenance.
  • 2.Over 10mm thickness bottom extraction makes the structure strong & firm.
  • 3.Protective bar & Cable management accessories are available for this series.
  • 4.RoHS certificated powder coating provide oxygen, scratch, rust & corrode resistance and makes the enclosure a longer life. (Standard Color: White, available in different colors).

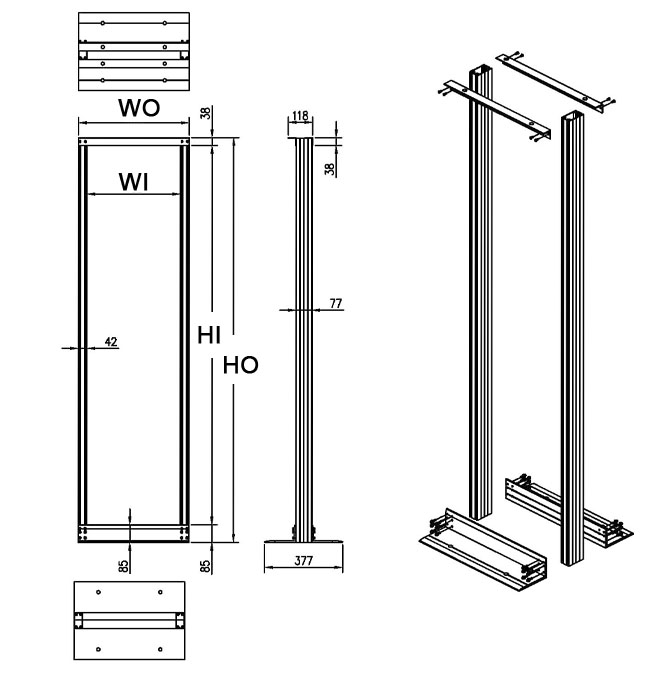

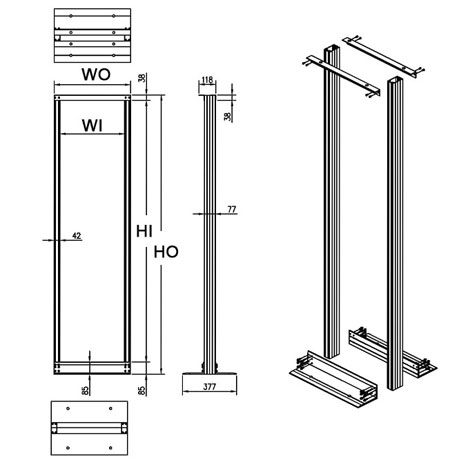

Model No.U
Unit		HO
Outside Height		HI
Inside Height		MaterialWidth
NOP-15U 15 805 678 AL 19"/23"
NOP-30U 30 1471 1344 AL 19"/23""
NOP-35U 35 1694 1567 AL 19"/23"
NOP-41U 41 1960 1833 AL 19"/23"
NOP-45U 45 2138 2011 AL 19"/23"
NOP-58U 58 2716 2589 AL 19"/23"
NOP-6'6" 42 1981 1864 SPCC 19"/23"
NOP-7' 45 2135 2010 SPCC 19"/23"
NOP-9' 58 2745 2620 SPCC 19"/23"
NOP-11'6" 76 3505 3380 SPCC 19"/23"



MaterialInchWI
Inside Wedth		WO
Outside Wedth
AL 19" 451 536
AL 23" 552 638
SPCC 19" 451 520
SPCC 23" 552 622



※Available to customize
※1U=1.75inchs=44.45mm， standard unit=mm
