WD Smart-Managed Network Cabinets

Elevating Physical Security Standards for Data Centers! Run a single cable to integrate all physical security components — giving you a smarter, more energy-efficient, and labor-saving solution that simplifies day-to-day operations.

Engineered for data centers, system integrators, and small-to-midsize businesses, this 19-inch intelligent management server cabinet combines load-rated structural certification with a patented tri-axial frame design. Fully integrated with a smart electronic lock, it delivers a comprehensive upgrade to your facility's physical security infrastructure.

MIL-STD-810F	MIL-STD-167	GR63-Zone 4
UL	CE	Made in Taiwan

Note: The main content begins at 3:03.

Product Description

Smart Security | EA-HWA WD Series Network Cabinets with Intelligent Electronic Lock Integration

In today's hyper-connected world, a server cabinet is no longer just a place to store equipment — it is the frontline defense of your organization's most critical digital assets. EA-HWA's WD Smart Management Server Cabinet delivers versatile access control and multi-mode unlocking solutions, purpose-built for data centers, enterprise IT rooms, server rooms, and any environment requiring temperature/humidity monitoring and physical security management. Compared to the standard WD Series, this upgraded model offers access logging, remote management, and door status alert capabilities — addressing the demands of modern digital security.

CORE ADVANTAGES
Network Cabinets Engineered for the Long Haul

The WD Smart Management Server Cabinet complies with the ANSI/EIA RS-310-C/D international standard, ensuring full compatibility with 19-inch servers and rack-mount equipment from all major manufacturers. Its proprietary Tri-axial Connection design reinforces the overall cabinet frame, delivering superior vibration resistance in demanding environments. The main structure is constructed from AL6063T5 aluminum alloy — a material chosen for its exceptional strength-to-weight ratio, keeping the cabinet lightweight without compromising structural integrity. The all-aluminum frame is inherently corrosion-resistant, eliminating rust-related maintenance costs and ensuring reliable performance for years to come.


Main Frame Static Load 2,500+ KGW	Dual Vibration Certification	Tool-Free Access
Third-party certified to withstand uniform static load exceeding 2,500 KGW, providing a solid and stable foundation for your most critical equipment assets.	Tested and certified to MIL-STD-167, MIL-STD-810F, and GR63-Zone 4, delivering reliable protection against vibration impact.	Front/rear doors and side panels can be removed and reinstalled quickly without any tools, streamlining cable management and routine maintenance.

UPGRADE SOLUTION PACKAGE

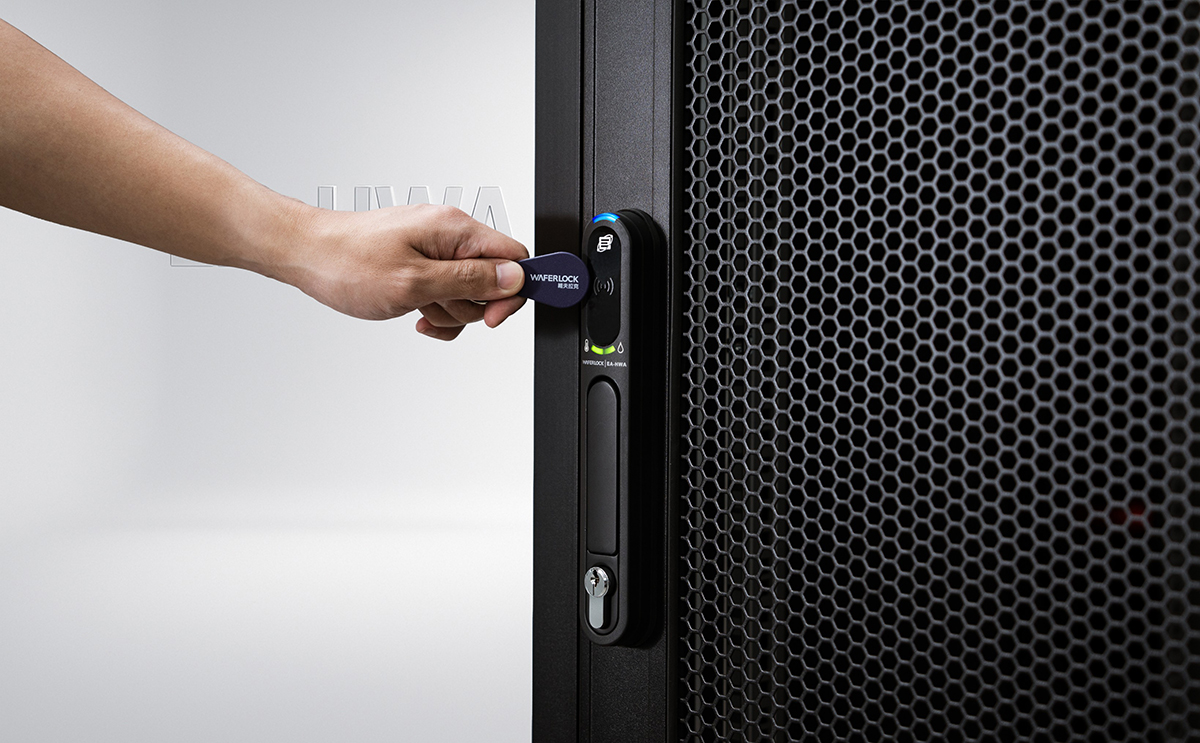

Integrated Smart Electronic Lock
Empowering Intelligent Network Cabinets Protection

Made in Taiwan • Premium Quality • Local Support

Eliminates the common challenges of long lead times and limited after-sales support associated with imported products by providing responsive local technical assistance and readily available spare parts inventory.


Built-in Door Position Sensor	Built-in Temperature and Humidity Sensor	Multiple Power Backup Protection
The lock is equipped with a highly sensitive built-in sensing component to verify whether the door is securely closed and locked. Any abnormal status is instantly reported through real-time alerts.	Each lock functions as a micro-environment monitoring station, featuring dual-color LED indicators and an audible buzzer alarm. Environmental data is transmitted for analysis to help optimize data center PUE.	Powered by a DC 12V main supply with a built-in CR2 lithium battery backup, ensuring continuous operation even during power outages or network disruptions in the data center.

ISO 27001 Compliance Support • UL94-V0 Fire-Resistant Material • IP67

Unlock Methods

RFID Access Card（MIFARE DESFire / Classic）
Cloud-Based Remote Unlocking（LiveAM Platform）
Mechanical Physical Key (Backup Access)

Communication Interface

RS485

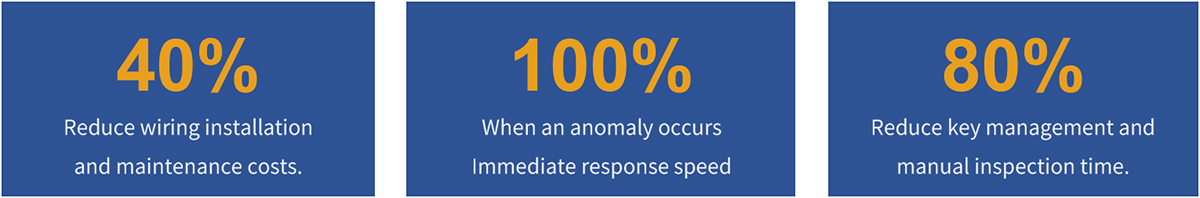

QUANTIFIABLE OPERATIONAL BENEFITS
Reduce Costs and Improve Management Efficiency

For multiple interconnected server racks or hot/cold aisle containment rack islands, the WD Intelligent Management Server Rack utilizes RJ45 network interface daisy-chain connectivity. A single 12V/2A power supply can support up to 6 racks, effectively simplifying data center cabling infrastructure and installation work.

Application Scenario


System Integrators (SI) / Data Center Integrators	Government & Financial Institutions	Small and Medium-sized Enterprises (SMEs)	Edge Computing Nodes
Compliant with 19-inch standards and easy to integrate. Pre-arranged and pre-routed cabling simplifies on-site installation processes, shortens delivery time, and improves profit margins.	Made in Taiwan with fast delivery and responsive support, making it an ideal solution for lean staffing environments.	Helps meet ISO 27001 compliance requirements for data security and provides optimal protection for high-value equipment that cannot be frequently maintained.	Highly stable rack structure combined with an IP67-rated smart door lock, enabling micro data center deployments in factories or remote locations.

PRODUCT SPECIFICATIONS
Technical Specifications

Main body Specification Items		WD Series Parameters
External Width	600mm	Standard Compliance	ANSI/EIA RS-310-C/D
External Height	Cabinet height: 1975mm with casters : 2060mm	Frame Load Capacity	≥ 2500 KGW （Third-party certified）
External Depth	Cabinet depth: 770mm with locks: 822mm	Vibration Certification	MIL-STD-167、MIL-STD-810F、GR63-Zone 4
Internal Height	42U (approx. 1867mm)	International Certifications	UL、CE、ISO
Compatible Equipment	For 19”equipment/ width ≤ 483 mm × depth ≤ 550 mm	Door Options	Acrylic door / ventilated mesh door; left/right reversible, tool-less switching

ELECTRONIC LOCK SPECIFICATIONS

Lock Specification Items		Smart Electronic Lock Parameters
Protection Rating	IP67 Dustproof & Waterproof	Power Supply	DC 12V （Backup: CR2 lithium battery）
Fire-Retardant	UL 94-V0	Communication Interface	RS485
Operating Temperature	-10°C ～ 65°C	RFID Support	MIFARE DESFire / Classic（AES 128 bit）
Operating Humidity	0 ～ 90% RH	Country of Origin	Taiwan

Other Track Records

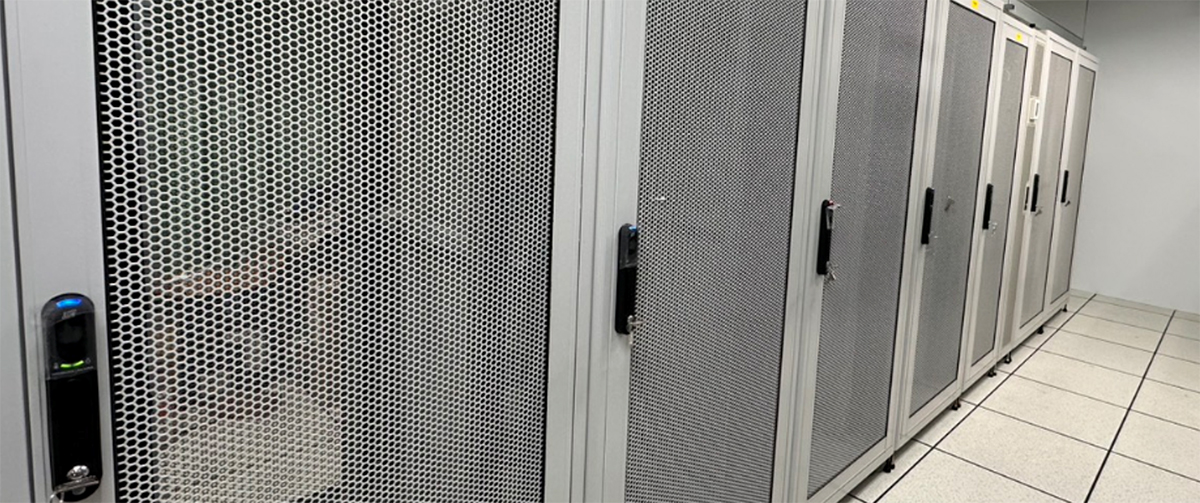

NCKU (National Cheng Kung University) Server Room

Frequently Asked Questions (FAQ)

Q1. Our company already has employee ID cards. Can we directly assign access permissions using our existing cards?
A1. This product supports both MIFARE Classic and DESFire formats, covering approximately 80–90% of the corporate card formats currently used in the market. In most cases, your existing cards can continue to be used directly.

Q2. Can this lock be integrated with our existing DCIM (Data Center Infrastructure Management) or access control system? Will additional software development be required?
A2. The lock supports RS485 communication, and most mainstream environmental monitoring and control software platforms can read the data directly. Integration requirements are minimal and highly compatible with existing systems.

Q3. Our data center cabinets are older models. Can this lock directly replace the original handle lock? Will drilling be required?
A3. An on-site measurement and evaluation by our engineers will be required. Custom manual cutouts can be performed if necessary, or the cabinet door assembly can be replaced with a new door set.
For further information, please feel free to contact us and leave your requirements. Our professional team will arrange a dedicated representative to contact you directly.
