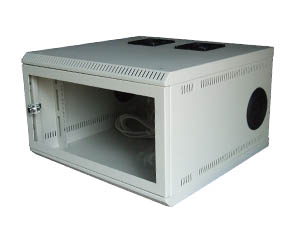

Product Serial: WA Advanced Type Wall Mount Bracket
Application
19 Wall Mount Racks, Wall Mounted 19 Rack |
1. Body adopts one-piece forming design. This rack is powder coated to fight against rust, oxidization, scrapes, acids, alkali erosion, and lacquer peeling.
2. An acrylic front door with a hidden lock.
3. The rack has made cable entry holes and has rubber cover to provide dust or insects destroy the equipment.
4. Top frame with fan unit to help the ventilation of equipment. It’s also has UL certified.
5. 19” extra-wide rack is available.
6. Max weight loaded up to 60 KGW with reinforce wall rack.
7. Custom-design also available.

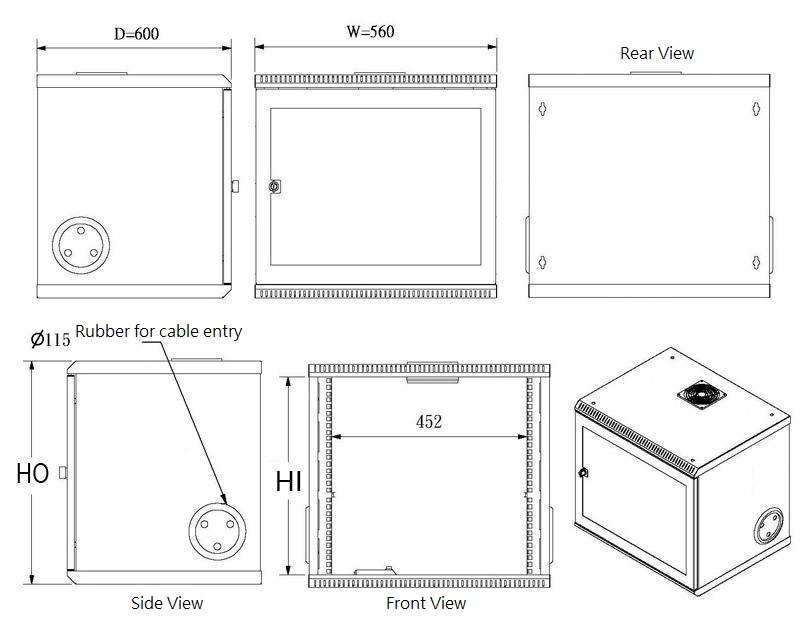

| Model No. | U Unit | HO Outward Heighe | HI Inward Height | DO Outward Depth | |
|---|---|---|---|---|---|
| ● | WA-0660 | 6 | 339 | 279 | 600 |
| ● | WA-0860 | 8 | 428 | 368 | 600 |
| ● | WA-1060 | 10 | 517 | 457 | 600 |
| ● | WA-1260 | 12 | 606 | 546 | 600 |
| ● | WA-1560 | 15 | 739 | 679 | 600 |
※● standard Model ●Making to order
※1U=1.75inchs=44.45mm， standard unit=mm
| Inch | WI Inward Wedth | WO Outward Wedth |
|---|---|---|
| 19" | 452 | 560 |
If you are interested in our 19 Wall Mount Racks, Wall Mounted 19 Rack, please contact us online.
