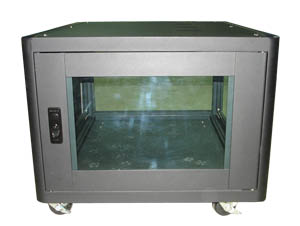

FD Combined Wall Mounted Server Rack, Wall Mount Server Racks
Product Serial: FD Combined Wall Mounted Server Rack

Application

Wall Mounted Server Rack, Wall Mount Server Racks

This FD combined wall mounted server rack is produced according to the regulation of ANSI/EIA RS310-C, and can be installed with standard 19" instrument. Max weight loaded up to 60KGW with reinforces wall rack.

Product Description

Wall Mount Server Rack

Wall Mounted Server Rack, Wall Mount Server Racks


1. The main vertical rails of the rack are made with aluminum pillars and easily to assembled and disassembled.


2. Acrylic door set (including lock) is anti-theft, and transparent part is easy to let users observe the condition of instrument. (You can buy honeycomb door)


3. Lower plate set has reserved with cable outlet and installed with anti-insect rubber cover to avoid any unknown animal entering to destroy the internal device. Besides, it has a function for scraping prevention.


4. Noiseless radiation fan is mounted at upper side and protective device is also mounted to avoid any danger. It adopts exhaust suction type to prevent dust falling to affect to instrument and problem of dust accumulation. It's also passing UL certified.


5. Rack mount pillars ( AL6063T5) can be set at the front or back of the rack to meet the actual size needs and can be stacked or floor use.


6. Max weight loaded up to 60KGW with reinforces wall rack.


7. This rack is powder coated to fight against rust, oxidization, scrapes, acids, alkali erosion, and lacquer peeling. It’s also passing SGS certified. The standard color: white and black. (Custom-design also available)


8. Power supplied is one set of 3-holed 6-socket, and it has protection device against sudden-wave and 15A safety device. Power specification can select either 110V or 220V. It’s also passing UL certified.


9. Standardization for specification, prompt delivery, and special size can be custom-made on request.


Product Specifications
 Model No.U
Unit
HO
Outward Heighe
HI
Inward Height
DO
Outward Depth
FD -0660 6 334 267 600
FD -0860 8 423 356 600
FD -1060 10 512 445 600
FD -1260 12 600 534 600
FD -1560 15 734 667 600

standard Model Making to order
※1U=1.75inchs=44.45mm, standard unit=mm

InchWI
Inward Wedth
WO
Outward Wedth
19" 451 600
