Product Serial: 19" NWA
Application
19" Wall Mount Enclosures, Wall Mount Network Cabinet - NWA |
Product Description
| 1.Body adopts one-piece forming design. This rack is powder coated to fight against rust, oxidization, scrapes, acids, alkali erosion, and lacquer peeling. |  |
| 2.An acrylic front door with a hidden lock. |
 |
| 3.The rack has made cable entry holes and has rubber cover to provide dust or insects destroy the equipment. |
 |
| 4.Top frame with fan unit to help the ventilation of equipment. It's also has UL certified. |
 |
5. 19" wall mount cabinet rack : 19" extra-wide rack is available.
6.Max weight loaded up to 60 KGW with reinforce wall rack.
7.Power stripe inside (6-way 110V/ 120V) it's also passing UL certified.
8. Custom-design also available.

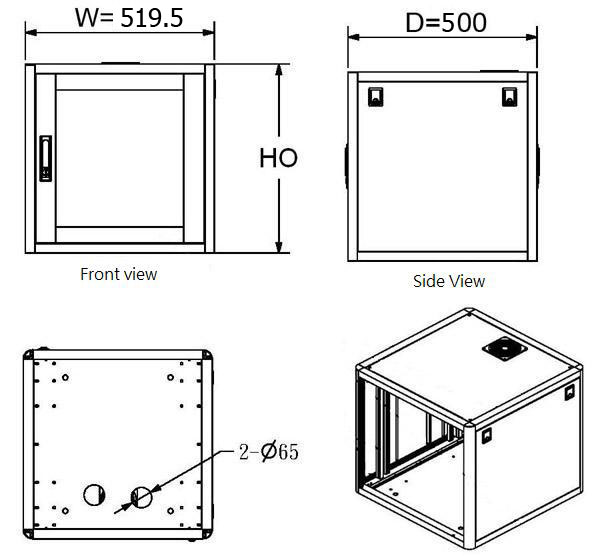

Product Specifications
| Model No. | U Unit | HO Outward Heighe | HI Inward Height | DO Outward Depth | |
|---|---|---|---|---|---|
| ● | NWA-0650 | 6 | 302 | 267 | 500 |
| ● | NWA-0850 | 8 | 391 | 356 | 500 |
| ● | NWA-1050 | 10 | 480 | 445 | 500 |
| ● | NWA-1250 | 12 | 569 | 534 | 500 |
| ● | NWA-1550 | 15 | 702 | 667 | 500 |
※● standard Model ●Making to order
※1U=1.75inchs=44.45mm， standard unit=mm
| Inch | WI Inward Wedth | WO Outward Wedth |
|---|---|---|
| 19" | 451 | 519 |
If you are interested in our 19" Wall Mount Enclosures, Wall Mount Network Cabinet, please contact us online.
