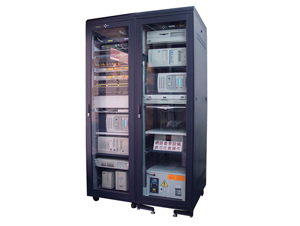

Product Serial: NE2 Series (Aluminum)
Application
NE2 series computer cabinets (19 inch cabinets) are accordance with ANSI/EIA RS 310-C/D and certified by UL, CE, MIL-STD-167 vibration test, MIL-STD-810F and SGS pressing certified that can bear loads above 1500 KGW, another has passed ISO 9001. We can provide the best products and service quality. |
Product Description
Computer Cabinets, Rackmount Cabinet :
| 1.It study light weight squeeze-cast aluminum frame with aluminum casting arc mold and 3 direction corners casting (material: ADC12) to make it more stable. In addition, it only uses 2 pieces M8 hardware to stable the device. |
 |
 |
| 2.Flexible vertical rails that meet ANSI/EIA RS-310-C/D standard can fit different 19" cabinet rack , ex: COMPAQ, SUN, IBM, HP, ACER…etc. |
 |
| 3.Movable slide side pillars (material: AL6063T5) can fit different depth equipment. The device can be taken without any hand tools. |
 |
| 4.The device can be set 2.5” caster or on a 4” floor stand can poise the equipment. ( You can buy extensible floor leveler).The frame of both units can bear loads above 1500 KGW. |
 |
| 5.The door can be easily assembled and disassembled with out any additional tools. A choice of a honeycomb any an acrylic door is available for both the front and rear of the rack. (It can ventilation reach to 60%, if you choice honeycomb doors) |
 |
 |
 |
 |
| 6.The side panel can be easily assembled and disassembled without any hand tools. The side panel can be set lock it’s more secure. |
 |
 |
| 7.Upper Cover and Lower Plate Set: Heat dissipating fan box (3 pcs) installed at the upper end of the rack to make the heat dissipating. That easy to replacement when one of the fan was breakdown. (According to the customer’s need to add the fan.) Lower plate set is assembled by 3 pieces to make in/out of electric wires easier. |
 |
 |
8. This rack is powder coated to fight against rust, oxidization. There are accordance with SGS and ROHS standard. The standard color: white and black. (custom-design also available)
9.Power stripe inside (8-way 110V/ 120V) it's also passing UL certified. (custom-design also available)
Product Specifications

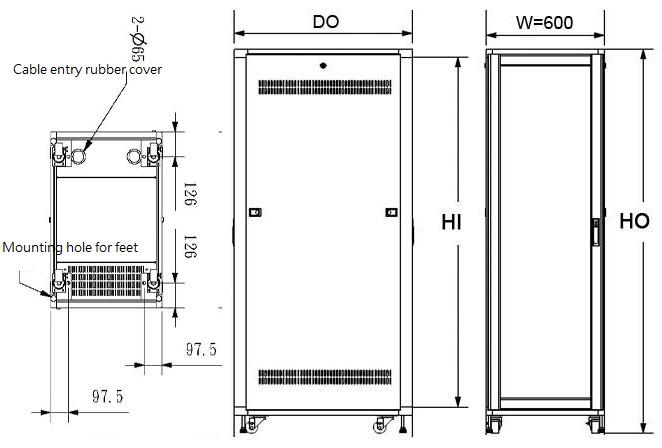

| Model No. | U Unit | DO Outward Depth | DI Inward Depth | HO Outward Heighe | HI Inward Height |
|
|---|---|---|---|---|---|---|
| ● | NE2-30-90 | 30U | 900 | 830 | 1548 | 1334 |
| ● | NE2-30-100 | 1000 | 930 | |||
| ● | NE2-30-110 | 1100 | 1030 | |||
| ● | NE2-35-90 | 35U | 900 | 830 | 1770 | 1556 |
| ● | NE2-35-100 | 1000 | 930 | |||
| ● | NE2-35-110 | 1100 | 1030 | |||
| ● | NE2-41-90 | 41U | 900 | 830 | 2037 | 1823 |
| ● | NE2-41-100 | 1000 | 930 | |||
| ● | NE2-41-110 | 1100 | 1030 | |||
| ● | NE2-42-90 | 42U | 900 | 830 | 2082 | 1868 |
| ● | NE2-42-100 | 1000 | 930 | |||
| ● | NE2-42-110 | 1100 | 1030 |
※●standard Model ●Making to order
※1U=1.75inchs=44.45mm， standard unit=mm
| Inch | WI Inward Wedth | WO Outward Wedth |
|---|---|---|
| 19" | 451 | 600 |
| 23" | 553 | 702 |
