Product Serial: WD Series (Aluminum)
Application
19 Server Racks - WD series are accordance with ANSI/EIA RS 310-C/D and certified by UL, CE, MIL-STD-167 vibration test, MIL-STD-810F and SGS pressing certified that can bear loads above 1500 KGW, another has passed ISO 9001. Our 19 server racks can offer of complete network supplies and solutions for all types of businesses. |
19 Server Racks, Computer Server Racks :
| 1.It study light weight squeeze-cast aluminum frame with 3 direction corners casting (material: ADC12) to make it more stable. In addition, it only uses 3 pieces M5 hardware in the each shaft. |
 |
 |
| 2.Flexible vertical rails that meet ANSI/EIA RS-310-C/D standard can fit different 19” cabinet rack, ex: COMPAQ, SUN, IBM, HP, ACER…etc. |
 |
| 3.Movable slide side pillars (material: AL6063T5) can fit different depth equipment. The device can be taken without any hand tools. The frame of both units can bear loads above 1500 KGW. |
 |
| 4.The device can be set 2.5” caster or on a 4” floor stand can poise the equipment. ( You can buy extensible floor leveler) |
 |
 |
| 5.The door can be easily assembled and disassembled with out any additional tools. A choice of a honeycomb any an acrylic door is available for both the front and rear of the rack. (It can ventilation reach to 60%, if you choice honeycomb doors.) |
 |
 |
 |
 |
| 6.The side panel can be easily assembled and disassembled without any hand tools. |
 |
 |
| 7.For ventilation and prevent rust the device can be set 2 pieces fans. (custom-design also available) |
 |
 |
8.This rack is powder coated to fight against rust, oxidization. There are accordance with SGS and ROHS standard. The standard color: white and black. (custom-design also available)
9.Power stripe inside (8-way 110V/ 120V) it's also passing UL certified. (custom-design also available)
If you are interested in our 19 server racks (computer server rack). please feel free to contact us at your convenience. We will be offering you all the specification of our products for your reference immediately.

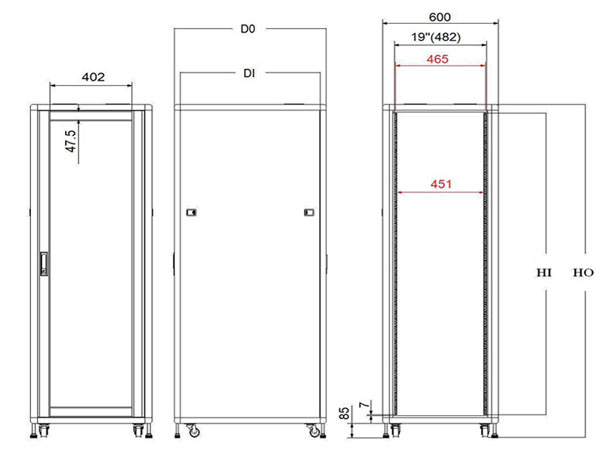

| Model No. | U Unit | DO Outward Depth | DI Inward Depth | KG | HO Outward Heighe | HI Inward Height | |
|---|---|---|---|---|---|---|---|
| ● | WD-15-62 | 15U | 620 | 550 | 42 | 860 | 668 |
| ● | WD-15-77 | 770 | 700 | 50 | |||
| ● | WD-15-90 | 900 | 830 | 57 | |||
| ● | WD-20-62 | 20U | 620 | 550 | 50 | 1082 | 889 |
| ● | WD-20-77 | 770 | 700 | 57 | |||
| ● | WD-20-90 | 900 | 830 | 66 | |||
| ● | WD-25-62 | 25U | 620 | 550 | 55 | 1305 | 1112 |
| ● | WD-25-77 | 770 | 700 | 64 | |||
| ● | WD-25-90 | 900 | 830 | 73 | |||
| ● | WD-30-62 | 30U | 620 | 550 | 62 | 1527 | 1334 |
| ● | WD-30-77 | 770 | 700 | 71 | |||
| ● | WD-30-90 | 900 | 830 | 79 | |||
| ● | WD-35-62 | 35U | 620 | 550 | 68 | 1749 | 1556 |
| ● | WD-35-77 | 770 | 700 | 77 | |||
| ● | WD-35-90 | 900 | 830 | 83 | |||
| ● | WD-35-100 | 1000 | 930 | 88 | |||
| ● | WD-35-110 | 1100 | 1030 | 99 | |||
| ● | WD-41-62 | 41U | 620 | 550 | 76 | 2016 | 1823 |
| ● | WD-41-77 | 770 | 700 | 85 | |||
| ● | WD-41-90 | 900 | 830 | 90 | |||
| ● | WD-41-100 | 1000 | 930 | 96 | |||
| ● | WD-41-110 | 1100 | 1030 | 100 | |||
| ● | WD-42-62 | 42U | 620 | 550 | 77 | 2060 | 1867 |
| ● | WD-42-77 | 770 | 700 | 86 | |||
| ● | WD-42-90 | 900 | 830 | 91 | |||
| ● | WD-42-100 | 1000 | 930 | 97 | |||
| ● | WD-42-110 | 1100 | 1030 | 102 |
※●standard Model ●Making to order
※1U=1.75inchs=44.45mm， standard unit=mm
| Inch | WI Inward Wedth | WO Outward Wedth |
|---|---|---|
| 19" | 451 | 600 |
| 23" | 553 | 702 |
