Product Serial: SPCC
Application

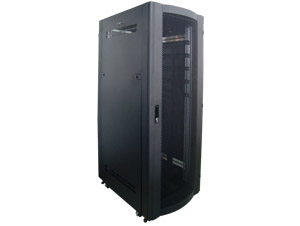

SR 19" Network Cabinet Rack series is according to the regulation of ANSI/EIA RS-310-C/D standard. SPCC design that more cheap and can provide customers more choice of the network cabinet. If you are interesting in our network cabinet. Welcome to contact us online. |
19 Rack Cabinets, 19 Racks, 19 Cabinets Manufacturer
1.Main frame is made of SPCC pillar and rack mount pillar. That can be easily assembled and disassembled. It is for heavy loading, ant vibration, has no deformation.
| 2.Flexible vertical rails that meet ANSI/EIA RS-310-C/D standard can fit different 19” cabinet rack (server rack cabinets), ex: COMPAQ, SUN, IBM, HP, ACER…etc. |
 |
| 3.Flexible vertical rails that meet ANSI/EIA RS-310-C/D standard can fit different 19” cabinet rack, ex: COMPAQ, SUN, IBM, HP, ACER…etc. There are making holes for each 1U distance to make assembly of the equipments easier. |
 |
| 4.Max weight loaded up to 1500KGW. The device can be set 2.5” caster or on a 4” floor stand can poise the equipment that can keep away from sliding and decline. (You can buy extensible floor levelers.) |
 |
5.Front door is design with aluminum frame and honeycomb on SPCC curve door and rear door is made of aluminum frame and honeycomb. The frame has no deformation. (It can ventilation reach 70%, if you choice honeycomb doors.) The doors have hidden key locks for the rack.
 |
 |
 |
 |
| 6.The side panel is dismountable without any hand tools. Installed the U shape reinforcements to enhance the structure. The side panel can be set lock it's more secure. |
 |
7.Upper Cover and Lower Plate Set:
Heat dissipating fans (2pcs) installed at the upper end of the rack to make the heat dissipating. That easy to replacement when one of the fan was breakdown. (According to the customer’s need to add the fan.) Lower plate set is assembled by 2 pieces to make in/out of electric wires easier.
8. This rack is powder coated to fight against rust, oxidization, scrapes, acids, alkali erosion, and lacquer peeling. The standard color: white and black. (Custom-design also available)
9.Power stripe inside (8-way 110V/ 120V) it’s also passing UL certified. (custom-design also available)
| Model No. | U Unit | DO Outward Depth | DI Inward Depth | H Including Wheel | HO Outward Heighe | HI Inward Height | |
|---|---|---|---|---|---|---|---|
| ● | SR-37-60 | 37U | 600 | 480 | 1838 | 1753 | 1645 |
| ● | SR-37-70 | 700 | 580 | ||||
| ● | SR-37-80 | 800 | 680 | ||||
| ● | SR-37-90 | 900 | 780 | ||||
| ● | SR-37-100 | 1000 | 880 | ||||
| ● | SR-37-110 | 1100 | 980 | ||||
| ● | SR-42-60 | 42U | 600 | 480 | 2060 | 1975 | 1867 |
| ● | SR-42-70 | 700 | 580 | ||||
| ● | SR-42-80 | 800 | 680 | ||||
| ● | SR-42-90 | 900 | 780 | ||||
| ● | SR-42-100 | 1000 | 880 | ||||
| ● | SR-42-110 | 1100 | 980 |
※●standard Model ●Making to order
※1U=1.75inchs=44.45mm， standard unit=mm
| Inch | WI Inward Wedth | WO Outward Wedth |
|---|---|---|
| 19" | 452 | 600 |
| 23" | 553 | 702 |
