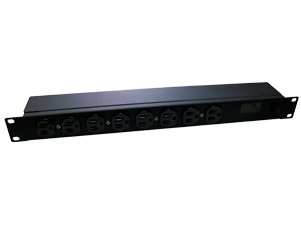

Product Serial: 19" Rack Mount 1U8Way External power Socket Stripe
Application
Applicable to intranet Office Networking system, Computer Supervising system, system integrates and other telecommunication equipment. The socket can choose according to customers need. |
Product Description
Material: SPCC
Output (NEMA 5- 15R), input 15Amp, 8-ports 3 sockets, 5-15P three-way plug
Supply voltage 110~125VAC
Diameter: 2.0mm2 (14AWG), Length: 3M
Includes 15A overload protection, Surge protection Device and use lightning protection to ensure safety.
Passed through the UL list.
Material: SPCC, 220V/250VAC 30Amp, L6-30p Wall-plug type.
Diameter: 5.5mm2 (10AWG), Length: 3M
Includes 15A overload protection, Surge protection Device and use lightning protection to ensure safety.
Passed through the UL list.
Product Specifications
| Type | 19” Rack mount 1U 8-way external power socket stripe (with Digital Ammeter) |
|---|---|
| Material | SPCC |
| Color | Black |
| Specifications | 110V/220V 15A/20A/30A |
| Length | 1.8M/3M |
| Port | 8 ports |
| Socket | NEMA 5-15R(Duplex Receptacle) (Specific requirements available) |
| Plug | NEMA 5-15P(General plug) (Specific requirements available) |
| Power Switch | No (Specific requirements available) |
| Power LED Connector |
No (Specific requirements available) |
| Ammeter | Digital type (Specific requirements available) |
| Circuit Breaker | Yes |
