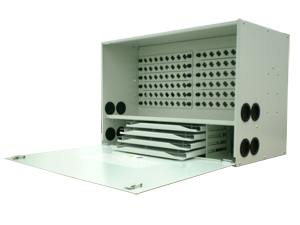

Product Serial: 6U96P Rack Mount
Application
Use of FTTH (Fiber To The Home) that provide patching, splicing and managing. Available for 19" or 23" rack and cabinet. |
Product Description
1.Use of FTTH (Fiber To The Home)
2.Provide patching, splicing and managing
3.Offering up to 96 fibers for work.
4.Enclosure body is mode of aluminum alloy sheet with the anti-corrosion and coating treatment.
5.Rubber grommets sealed for cable holes.
6.The panel is use of the activities button design that easy to install. Various removable adaptor plates for ST, SC, FC.
7.Custom-design also available.
Product Specifications
| Model | 6U 96Port Rack Mount |
|---|---|
| Material | AL5052 H34(T:1.2mm) |
| Color | White |
| Dimension | (W)432* (D)314* (H)303 mm |
| Coupling option | ST 、 SC 、 FC |
| Accessories | Patch panel (96Port ST/SC/FC ), Cable management panel |
| Accessories bag | L-mount of distribution unit*2, Gasket*8, Cable tie*6, Heat shrinkage protection sleeve*96, 96 port sticker*1 |
