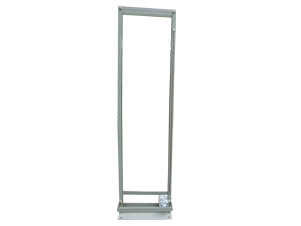

Product Serial: NOP Series - Open Rack (SPCC)
Application
This product is produced according to the regulation of ANSI/EIA RS-310-C/D standard. Structural stability, modular design, easy to installation and transportation. Material: SPCC and alinum. Custom-design also available and can install with variety of accessories. |
Product Description
1. Material: SPCC，T:3mm。
2. 2L or U shaped bottom, in order to strengthen fixed-function.
3.Protective bar & Cable arrangement accessories are available for this series.
4.SGS & RoHS certificated powder coating provides oxygen、scratch、rust & corrode resistance and makes the enclosure a longer life. (Standard Color：White, Others are also acceptable).
Accessories:
 |
 |
 |
|
Anchors*4pcs
|
Nuts、Washers*4 pcs each
|
M5*12 Panel Screws*50 pcs
|
Product Specifications

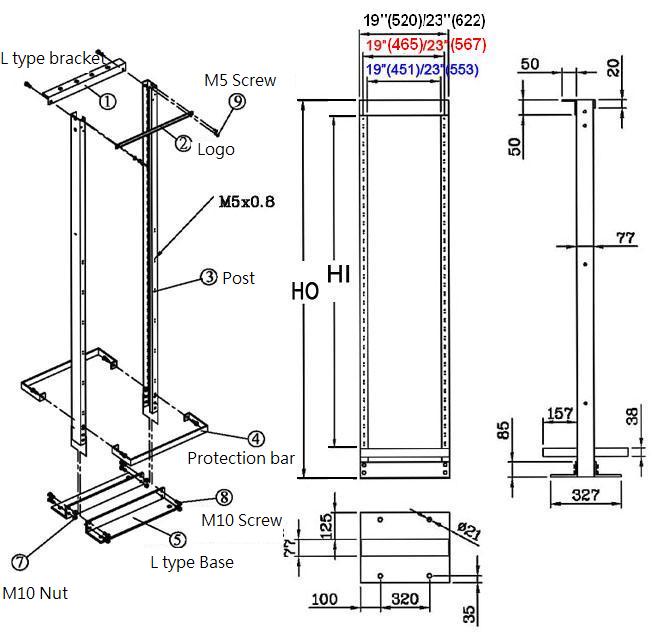

| Model No. | HO Outward Heighe | HI Inward Height | U Unit | Material | W Wedth |
|
|---|---|---|---|---|---|---|
| ● | NOP-15U | 797 | 667 | 15 | AL | 19 " |
| ● | NOP-30U | 1464 | 1334 | 30 | AL | |
| ● | NOP-35U | 1686 | 1556 | 35 | AL | 23" |
| ● | NOP-41U | 1953 | 1823 | 41 | AL | |
| ● | NOP-45U | 2130 | 2000 | 45 | AL | |
| ● | NOP-58U | 2708 | 2578 | 58 | AL | |
| ● | NOP-6'6" | 1982 | 1864 | 42 | SPCC | |
| ● | NOP-7' | 2315 | 2010 | 45 | SPCC | |
| ● | NOP-9' | 2745 | 2620 | 58 | SPCC | |
| ● | NOP-11'6" | 3505 | 3380 | 76 | SPCC |
※● standard Model ●Making to order
※1U=1.75inchs=44.45mm， standard unit=mm
| Inch | WI Inward Wedth | WO Outward Wedth |
|---|---|---|
| 19" | 451 | 535 |
| 23" | 553 | 636 |
